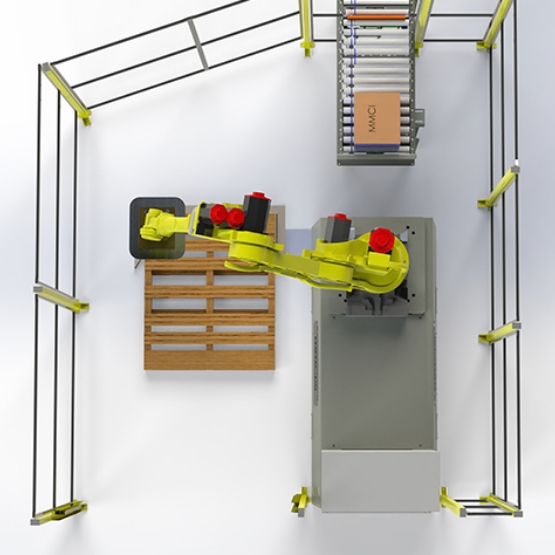

QSP-100

QSP-100

Single Position - Build on Floor

The QSP-100 represents the most cost-effective robotic palletizer in our Quick Ship Palletizer line.  The single position cell features all of our industry-leading technology with an ultra-compact footprint.

Manual Pallet Placement & Removal

QSP-100, quick ship palletizer, quick ship robotic palletizer, quick ship robotic palletizing, robotic palletizing
QSP-100 Specifications

Application

One production line running one SKU at a time

Sealed cases, trays and bliss boxes that can be top picked with either vacuum or clamp EOAT (End-of-Arm Tool)

Footprint

11'11" x 10'9"

Base & Control Cabinet

QSP Smart Base featuring Allen Bradley PLC

Operator Interface

10" in Allen Bradley Panel View Color HMI featuring QSP Pattern Pro

Safety

QSP Safe-Zone including light curtain at pallet exit location

Continuous Operation

No

Case Size Range

Length 9" – 29"  |  Width 5" – 21"  |  Height 3" – 24"

Max. Case Weight

Up to 50 lbs

Max. Case Rate

Up to 30 CPM

Max. Pallet Height

Up to 90" including pallet

Case Infeed & Positioning Conveyor

TGW IntelliROL motorized roller conveyor with reference pusher

Robot

FANUC M20iD/25  |  FANUC M710iC/50H  |  FANUC M410iC/110  |  FANUC M410iB/140H  |  FANUC M410iC/185

End-of-Arm Tooling

Vacuum Gripper or Clamp Tool for single case handling

Pallet Conveyor

No

Sheet Handling

Manual

Pallet Handling

Manual

Floor Jack Pallet Exchange

Yes

Forklift Pallet Exchange

Yes

Support Structure & Design

Preassembled with QSP Point-Lock design for simplified installation

Price

Competitively priced and part of the QSP Smart Buy lease program.
