QSP-100CPS
Single Position - Build on Conveyor
+ Pallet Hopper & Sheet Hopper
The QSP-100CPS represents the highest level of single position automation in our Quick Ship Palletizer line. It features all of our industry leading technology along with the following:
C = Automated Outfeed Pallet Conveyor
P = Automated Pallet Picking by Robot
S = Automated Sheet Picking by Robot
| QSP-100CPS Specifications | |
|---|---|
|
Application |
One production line running one SKU at a time
Sealed cases, trays and bliss boxes that can be top picked with either vacuum or clamp EOAT (End-of-Arm Tool) |
|
Footprint |
18'3" x 16'1" |
|
Base & Control Cabinet |
QSP Smart Base featuring Allen Bradley PLC |
|
Operator Interface |
10" Allen Bradley Panel View Color HMI featuring QSP Pattern Pro |
|
Safety |
QSP Safe-Zone including light curtain at pallet exit location |
|
Continuous Operation |
Yes |
|
Case Size Range |
Length 9" – 29" | Width 5" – 21" | Height 3" – 24" |
|
Max. Case Weight |
Up to 50 lbs |
|
Max. Case Rate |
Up to 30 CPM |
|
Max. Pallet Height |
Up to 90" including pallet |
|
Case Infeed & Positioning Conveyor |
TGW IntelliROL motorized roller conveyor with reference pusher |
|
Robot Options |
FANUC M20iD/25 | FANUC M710iC/50H | FANUC M410iC/110 | FANUC M410iB/140H | FANUC M410iC/185 |
|
End-of-Arm Tooling |
Vacuum Gripper or Clamp Tool for single case handling |
|
Pallet Conveyor |
Yes |
|
Sheet Handling |
Robotically |
|
Pallet Handling |
Conveyor |
|
Floor Jack Pallet Exchange |
No |
|
Forklift Pallet Exchange |
Yes |
|
Support Structure & Design |
Preassembled with QSP Point-Lock design for simplified installation |
|
Price |
Competitively priced and part of the QSP Smart Buy lease program |
Enhanced Automation
The QSP-100CPS inlcudes the following automation enhancements.
Automated Pallet Picking
By outfitting the end-of-arm tooling with fork extensions and adding a pallet hopper to the cell, the QSP-100CPS brings an added level of automation to the production floor.
The pallet hopper is integrated into the cell's design using our QSP Point-Lock technology that simplifies installation and ongoing operation while making the entire system more portable.
Automated Sheet Picking
The automated sheet picker option included in this model utilizes a pre-positioned sheet hopper featuring our QSP Point-Lock technology for increased automation.
The end-of-arm tooling utilizes an innovative design and proven vacuum technology to quickly, pick and place sheets into place on the pallet.
Outfeed Pallet Conveying
This robotic palletizer model features an automated pallet conveyor designed for performance, safety and durability.
It is outfitted with forklift proximity sensors, reinforced chain guards, fixed end-stop fork guides and protective wheel stops that eliminate downtime and extend the life of conveyor.
Other Models
QSP-100
Single Position - Build on Floor
+ Manual Pallet Placement/Removal
QSP-100S
Single Position - Build on Floor
+ Sheet Hopper
QSP-100CP
Single Position - Build on Conveyor
+ Pallet Hopper

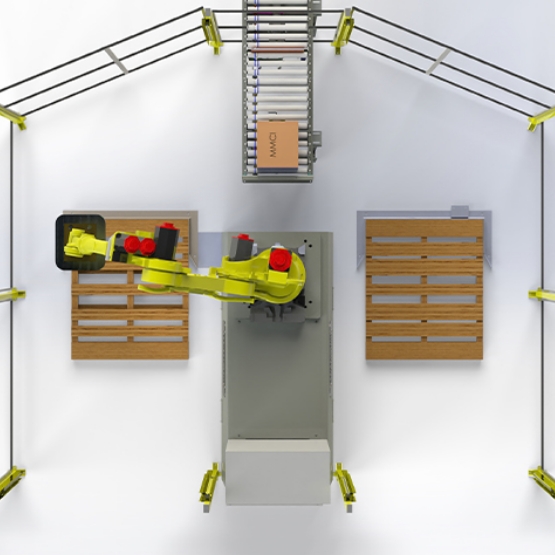

QSP-200
